STS-107...post flight analysis & links

What happened to Columbia?


Columbia, OV-102, was a friend to everyone at the Space Telescope Science Institute. She performed magnificently during SM3B by providing a platform for upgrading HST, and ferrying her crew and equipment safely to and from orbit. That was her 27th successful flight. Columbia was scheduled to be the shuttle for HST's next servicing mission. To that end, i feel a need to understand what happened to her and her crew, and this page will serve as my own clearing house for sharing some information that i will collect and post irregularly over the coming weeks.

Disclaimer

The reader should first recognize that the following presentation of information and analysis thereof represents my own understanding and is not an official finding of NASA, STScI, CSC, or any other other body. All of my information is available from public sources unless otherwise stated. Errors and misrepresentations are my own and can be brought to my attention at jordan_nospam@stsci.edu ... please strip off "_nospam" to complete a valid email address.

Additions and changes will be made noting only a cursory history when correcting previous errors and adding new information. This an evolving story for which i am attempting to converge the details toward what is known and will be known about what happened.


What was going on over New Mexico?

The 'not-Starfire' image.

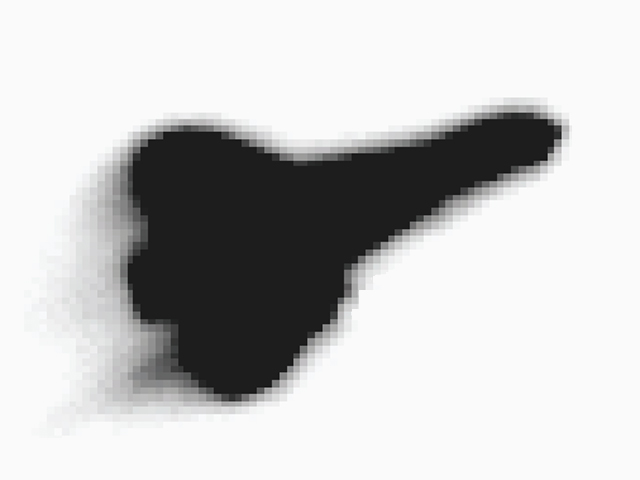

At right is a link to a pair of simple image processing results on the 'Starfire Group' image of Columbia, purportedly taken with a 3.5" Questar telescope aimed at a computer controlled tracking mirror, as she approached from the west on the morning of February 1, 2003. A digital copy of the original image was retrieved from the NASA web site, rotated until symmetric about a horizontal line in NIH Image, and smoothed to reduce pixilation. A copy of the upper (right) half of the orbiter was made, flipped, and pasted onto the lower left half of the orbiter image. Two different methods of image combination are displayed to highlight anomalous features. I could not easily turn the protrusion into an indentation by interactive alignment in the software package.

The azimuth of the shuttle when the image was taken is not stated, so the precise rotation which needs to be applied could not be determined, and neither, therefore, the precise geometry. I have not been satisfied with the projections of the forward fuselage geometry against the sky for any VRML orientation that i have tried. The version i worked with (obtained from an on-line space reporting service) is of unknown photometric scaling. Nevertheless one can speculate that the protuberance showing on the leading edge of the left wing might be optically bright material emanating from the interaction of the plasma with the wing.

A note of caution should be stated regarding the above speculation: one can actually get configurations of Columbia where the vertical stabilizer peeks out from behind the wing, jutting forward of the leading edge...right where the leading edge, left wing anomaly occurs! Likewise, it is possible to get configurations where the rear of the vertical stabilizer juts behind the left wing. Furthermore, if the protrusion isthe vertical stabilizer, then the anomaly trailing the left wing could be the ionization tail coming off of the nose!! Until the precise geometry is made clear, the nature of the leading-edge left-wing anomaly should be treated skeptically.

AWST Feb 7 issue states that a 75-degree left-bank had been completed by the time this image was taken. The NASA groundtrack & events summary timeline shows that occurred at approximately 13:56:55. Albuquerque overflight occurred at approximately 13:57:23. From the image, one can measure an aspect ratio of vehicle length to wingspan of 1.69:1. The approximate true aspect ratio is 1.51:1. From this, one can compute that the vehicle must have been in at least a 27-degree bank relative to the ground observer. The true bank relative to the ground observer is not constrained with this information since the vehicle is likely pitched down at some angle (nose closer to the observer), making the likely relative bank angle higher than 27-degrees. This assumes no distortions have been introduced in the creation of this public release version of the image. No distortions are apparent in the above NIH Image rotation and overlays.

A trigonometric calculation from this and the information provided in the ABQ Journal article yields that the image was taken approximately 16 seconds before this time, depending upon the location of the ground telescope relative to Albuquerque and the actual Columbia ground track.

Note that the location of the anomaly extends from the junction of the double delta outward along the leading edge of the wing, but does not obviously extend forward along the highly swept chine segment of the wing. Since we do not know anything about the photometric scaling or zero-point, in the image, one can't say anything about what is seen between Columbia and the camera. Note that the outer edge of the main landing gear wheel well box is approximately in line with the junction of the double-delta.


Simulating Likely Demise Scenarios

As part of trying to understand Columbia's demise, one needs a model. I created a simple 6-element, 3-dimensional volumetric model (triangular plates for tail and wings, cylinders for mid- and aft-fuselage, and a frustum for the forward-fuselage) in an attempt to understand numerically what would happen during a wing failure event. Although crude, the results are interesting and to a limited extent applicable to Columbia.

Aero-Thermal Environment, Shuttle, Mach 18

It is essential to understand the general aero-thermal environment that Columbia was in. Columbia broke up at an altitude of ~200kft (~ 61 km) where the atmospheric pressure was ~ 0.2mbar and the atmospheric temperature is in the range 220-270 Kelvins. Columbia was traveling at a speed of about Mach 18 (~ 5.5 km/s). At this speed and atmospheric density, the force of the wind flow is equivalent to 180-mile per hour winds at sea-level, and the average heating rates are in the neighborhood of 1 megawatt per square metre (the sun provides just over a kilowatt per square metre at earth, for comparison). The aerodynamic and thermal environment is approximately computable using data and equations available in sources such as Francis Hale's Introduction to Spaceflight (note, there are a number of errors in the tables and graphs in its section on atmospheric entry, but the basic principles and equations presented are reasonable first approximations).

Control during re-entry: how the shuttle does it.

Shuttle re-entry is a delicate balancing act where the attitude of the spacecraft is adjusted to balance the center of mass close enough behind the center of pressure to minimize the aerodynamic torques on the vehicle. Technically, this is dynamically unstable, but the shuttle design provides sufficient control authority over a specific range of entry profiles.

Lift generated over the wing changes with speed due to different flow conditions at different speeds, therefore the angle of attack must be varied as the shuttle decelerates. Even though the shuttle is travelling very fast, at high altitudes where the atmospheric density is low, the elevons have little authority and so are not very useful. Reaction Control System (RCS) thrusters are relied upon in this regime for attitude control.

However, once the aerodynamic pressure builds, the elevons and body flap can be used to adjust the center of pressure on the underbody of the shuttle. This is achieved by actuating the elevons and body flap upward or downward, fractionally increasing or decreasing the drag area on the back of the vehicle, thereby adjusting the center of aerodynamic pressure at a given attitude. In some altitude range between entry interface and stratospheric flight, the Reaction Control System (RCS) shares duty with elevons and body flap for attitude control.

At low and sub-Mach numbers, the aerodynamics of the lift are different, the angle of attack of the vehicle is reduced since thermal protection is no longer required and the elevons change their role transitionally to become more conventional flight control surfaces.

The primary goal at the early stage of reentry is to bleed off orbital speed without undergoing high accelerations. Unfortunately, this has the tradeoff of high heating rates and total amounts of heat that are transferred to the spacecraft. Thus the need for the TPS (Thermal Protection System) which we have all heard so much about.

Columbia was in the flight regime where pitch RCS activity was nominally deactivated, although yaw control was the domain of the RCS. This is because at a 40-degree angle of attack travelling at Mach 18, the vertical stabilizer is shielded from the flow and is ineffectual at yaw control. Roll control was possible with both RCS and elevon actuation. What the domain control for each in this flight regime, i confess ignorance.

6-element, 3-D Inertial Shuttle model, 40-degree AOA.

This model was implemented in a spreadsheet form (Excel 4.0 on a macintosh at home) and used to compute approximate center of mass, principal moments of rotational inertia (uniform and cylindrical mass distribution assumptions), and center of pressure during entry at a 40-degree angle-of-attack--both with and without a left wing. Using standard classical mechanics, the model predicts angular acceleration rates starting from the stationary nominal entry attitude around all three axes of varying magnitudes.

What would happen with a wing failure?

A number of different type of wing failures are possible, and for the time being i will focus on wing separation or partial wing separation (or even disintegration) events. If you look at diagrams showing the interior wing structure of the shuttle, you can see that there are 4 large spars from wing-edge to mid-fuselage in the torque box which support the bulk of the wing loading.

Wing loading and design limits.

According to the AIAA Aerospace Design Engineers Guide, the shuttle wings are designed to withstand 4.5-g loads. From the NASA timeline charts, one can compute an aerodynamic deceleration of about 0.6-g near the time of breakup. However, there are also components of 1-g (downward) and centripetal acceleration (~-0.45-g) to factor in, bringing the total wing loading to ~0.8-g.

Types of wing failures:


Evolution of the breach.

Even though we do not know the extent of the damage before entry, basic physical principles can be applied to examine the limits of the evolution of damage within the wing after reentry began given what is known about sensor readings, known failures, and nominal behaviour.

The Timeline charts for off nominal behaviour show the evolution of sensor dropout and temperature trending prior to MCC LOS (official Mission Control Center console Loss of Signal at 13:59:32.136 UT).

The first signs of trouble were several temperature probes in the left main gear box showing slow, linear rise rates, probably indicating excessive heating of the gear box, but not indicating a gear box burn-through yet. It is likely that plasma was entering the wing by this time, but the penetration point(s) are not yet identified.

Probes in the aft portion of the wing went "off-scale" low throughout the entry period starting at 13:52:59, about 30 seconds before Columbia passed over the California coast, indicating power or data failure. This probably indicates that wires connecting these probes were burned through since the probes in the rear of the wing were not showing abnormal temperature readings and many of them had wire bundles routed around the outer and forward sides of the left main gear box. Other temperature (and wheel pressure) probes began showing temperature rises during the interval before MCC LOS, and others dropped off-line including ones in the left main gear box.

Curiously, a few others started trending down in temperature. This indicated a disturbance in the nominal heating pattern on and in the wing. This is potentially an important clue to the state of Columbia's wing, although i do not understand what it is telling us.

By 13:55, heat was penetrating to the join of the mid-fuselage and the wing, between the first and second struts. At about 1 minute before MCC LOS, a large number of sensors went off scale low in the wheel box.

Prior to MCC LOS, the left main gear brake line temperatures were elevated significantly, possibly indicating heating of the fluid in the lines or the line itself by direct exposure of the external line surface to plasma.

Did Columbia scream?

For five seconds after MCC console LOS at 13:59:31.167, telemetry continued coming down from Columbia, but suffered from high bit-error rates and so was not displayed on MCC consoles. James Oberg's Feb 25 article describes Columbia as flying on at this point, largely unchanged. Could some event associated with loss of vehicle have produced the high bit error rates before telemetry ceased?

Not necessarily. The TDRS satellite in use for telemetry downlink was near the vertical stabilizer from the view of the upper right S-band quad antenna located on the upper portion of the forward fuselage. Communication interference could have been caused by enhanced plasma density along line of sight or perhaps by partial occlusion by the vertical stabilizer. Brief periods of Columbia downlink dropout occurred throughout reentry.

Fuselage still intact at MCC LOS + 30 seconds.

For the brief two seconds of telemetry received following the extend complete LOS period, telemetry showed loss of pressure in all 3 hydraulic systems. Fuel cells (forward lower mid-fuselage), APUs (aft fuselage), and flight control computers (forward fuselage) aboard Columbia were all operational.

RCS thruster firings around MCC LOS

There are four types of rocket engines aboard shuttles: main engines (SSMEs) which produce some of the thrust to reach orbit, OMS engines which are used for orbit insertion and deorbit maneuvers, and two types of reaction control system (RCS) engines: verniers (100 N force) for fine control and R-40As (4000 N force) for higher rate maneuvers. The high rate RCS thrusters are the ones which were firing, each capable of producing about 70 kN of torque about the pitch and yaw axes of the orbiter, and about half of that around the roll axis when used in oppositely directed pairs. Comparing the roll rate of a pair of thrusters with the roll rates induced during a wing separation in the simple model, it is clear that RCS authority is insufficient to counter the roll with even a portion of the outboard left wing separating.

A one-second firing of a single high-rate RCS thruster produces about a half a degree per second yaw or pitch. Six yaw motors (4 aft, two forward) would produce about 3-degrees per second yaw. Starting about one-and-a-half seconds prior to MCC LOS, 2 right rear high rate RCS thrusters began firing. These would nominally have produced a 1-degree per second-squared angular acceleration--not enough to counter the yaw rate produced in the wing separation in the simple model, but approaching the threshold for yaw control for separation of the outboard segment of the wing. Combined with the newer information that an additional pair of RCS thrusters were active during the 5-seconds of post-MCC-LOS and before telemetry dropout, we could conclude that the entry guidance system was correcting for at least a large fraction of yaw that would have been induced from a hypothetical outboard wing separation.

Forward RCS units had been disabled by this time of flight, and RCS propellants possibly 'dumped'. The rear RCS pitch jets had also been commanded off as a nominal part of entry, since elevons nominally control the pitch of the orbiter during this stage of reentry. Jenkins states that rear roll thrusters are off by this stage as well, since aileron/elevons are used to control vehicle roll. The integrated timelines do not show when or if this did occur during Columbia's entry. To summarize, nominally only rear RCS yaw thrusters are available for vehicle control to supplement aileron/elevon and body flap actuation.

Columbia, at MCC LOS, had limited ability to manage unusual drag or center of pressure shifts during this phase of reentry. Yaw thruster ability was available, but at a nominal 40-degree angle of attack, any unusual aerodynamic torques would likely have had components in roll as well as yaw. If elevon hydraulic pressure was lost, Columbia might temporarily have been able to correct for yaw excursions and rates, but she probably would not have had an option for maintaining nominal entry attitude.


But, why did this happen to Columbia?

I won't pretend to know. We have seen 3 video frames ~ 80 seconds into launch showing at least two significantly sized chunks of debris between the orbiter and ET in one frame, and another chunk in another frame, the debris disappearing under the wing and perhaps another chunk of debris passing under the orbiter--possibly one from a previous frame, and then in the third frame something reappearing under the wing as a spray of widely dispersed particles. We have heard reports of an object tracked separating from the shuttle while on-orbit. Below, are some of the more popular theories of what went wrong, not all of which are mutually exclusive.
